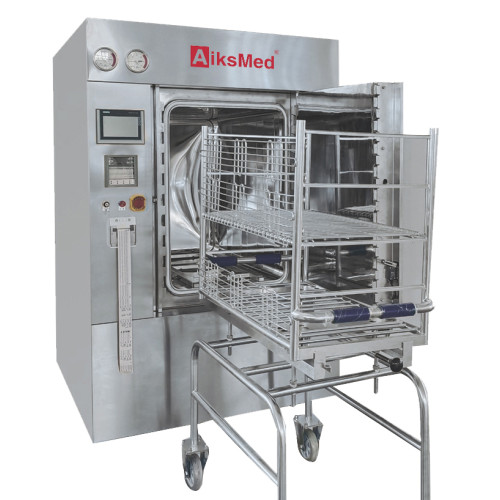

Pulse Vacuum Steam Sterilizer, Horizontal Sliding Door | Autoclave Sterilization Machine

Pulse Vacuum Steam Sterilizer, Horizontal Sliding Door | Autoclave Sterilization Machine

Pulse Vacuum Steam Sterilizer, Horizontal Sliding Door | Autoclave Sterilization Machine
Pulse Vacuum Steam Sterilizer, Horizontal Sliding Door | Autoclave Sterilization MachinePulse Vacuum Steam Sterilizer, Horizontal Sliding Door | Autoclave Sterilization MachinePulse Vacuum Steam Sterilizer, Horizontal Sliding Door | Autoclave Sterilization Machine
CategoriesGarments and Tools Steam Sterilizer
BrandAIKSMED Steam Autoclave Sterilizer Manufacturer
ModelMDD-0.3/0.45/0.55/0.65/0.75-V
Loading Capacity1000L, 1200L, 1500L
CustomizedAvailable
ApplicationGarments, Tools, Rubber Stoppers, Alu Caps
DoorSingle/Double, Horizontal Sliding
Control ModeAutomatic & Manual
Steam GeneratorBuilt-in/External
Loading SystemShelve/Cart
Terms of PaymentT/T
Download
Update TimeDec 21,2024
Detail Information
                                            PULSE VACUUM STEAM STERILIZER

                                                               AKS-MDD SERIES

               MDD Series Pulse Vacuum Steam Sterilizers are used for garments, tools sterilization in pharma industry.
                                                AIKSMED provides diverse chamber volumes for option,
                                                              including 1000L, 1200L, 1500L,
                                           there are single door, pass-through double doors to choose,
                                    To adapt for space requirement, MDD Series have very compact structure,
                                        meanwhile combined with various features for strict requirements,
         such as multiple sterilization process, easy maintenance, stable performance, and highly efficient process time.
                                        Additional accessories can be fitted to achieve higher level requests.
      eg. for biological safety laboratories, to separate sterile and non-sterile areas, and protect external environment,
                                         pass-through safety interlock, air extract filtration and sterization in place(SIP) ,
                                                      drainage cooling without pressure can be realized via MDD Series.
Application
Sterilization of garments, tools, rubber stoppers, aluminum caps, and etc.
Pulse Vacuum Steam Sterilizer garments

Pulse Vacuum Steam Sterilizer Alu Caps

Pulse Vacuum Steam Sterilizer tools

Pulse Vacuum Steam Sterilizer ampoule

AKS-MDD Series

Model

Chamber Size

Chamber Volume

AKS-MDD-1.0-H

680*1180*1250

1000L

AKS-MDD-1.2-H

680*1180*1500

1200L

AKS-MDD-1.5-H

680*1180*1900

1500L



★★★Features:
pulse vacuum sterilizer chamber
  Main components of sterilizer: sterilization chamber, sealing door, pipeline system, control system, loading&transfer system.

Design pressure up to 0.3MPa/3bar.

 Autoclave vessel made of AISI316L/304.

Housing, support frame, chamber made of corrosion-resistant stainless steel material.

 Safety valves for chamber, with over-pressure protection.

 Door interlock security system.

 Door lock with durable, heat and pressure-resistant seal/gasket.

Touch screen control.

  Access code to prevent uncontrolled software changes.

  Three-level authority management.

Up to 100 sterilization cycles.

 Portable PT-100 temperature sensor (class A).

 Display of sterilization temperature, time, F0 value in real time.

 Validation port to test thermal distribution.

 Network and USB ports for data transfer.

 Emergency stop button to stop autoclave cycles.

 Alarm information in form of code and full message.

autoclave sterilization pressure vessel
Design
■ Advanced structure of chamber combined with jacket for faster heating-up and cooling.


autoclave sterilization cycle
Operation

Pulse Vacuum Steam Sterilizer Air Filter
Air inlet & Extract Filtration

Pulse Vacuum Steam Sterilizer
Drainage Cooling & Security System
